特 性 FEATURES |
■ |

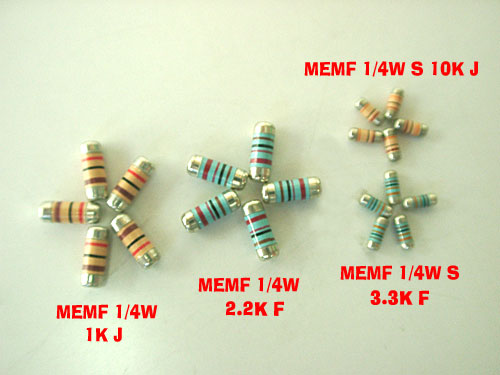

SMD 型式之碳素皮膜電阻器。
SMD style carbon resistor . |
| ■ |
以圓柱形方便設計安裝。
Free direction for mounting due to cylindrical design. |
| ■ |
具高可焊性特殊電極端子。
High solderability due to specially plated electrodes
|
| ■ |
電極強度高於晶片電阻(器)。
Electrodes strength is higher than flat chip resistors. |
| ■ |
比厚膜晶片電阻(器)更低的雜音(current noise)
Lower current noise than thick film flat chip resistors, |
| ■ |
有較佳的散熱性
Suitable for reflow,flow and iron soldering. |
|
品名
Type |
尺寸 Dimensions(mm) |
L |
C Min |
DI |
D2 Max |
D3 Max |
MECF 1/8W
0204 |
3.5±0.2 |
0.5 |
1.40±0.15 |
1.55 |
1.25 |
MECF 1/4WS
0204 |
3.5±0.2 |
0.5 |
1.40±0.15 |
1.55 |
1.25 |
MECF 1/4W
0207 |
5.9±0.2 |
0.5 |
2.2±0.1 |
2.4 |
2.1 |
MECF 1/2WS
0207 |
5.9±0.2 |
0.5 |
2.2±0.1 |
2.4 |
2.1 |
MECF 1WSS
0207 |
5.9±0.2 |
0.5 |
2.2±0.1 |
2.4 |
2.1 |
MECF 1/2W
0309 |
8.5±0.2 |
0.5 |
3.2±0.2 |
3.4 |
3.0 |
MECF 1W S
0309 |
8.5±0.2 |
0.5 |
3.2±0.2 |
3.4 |
3.0 |
|
